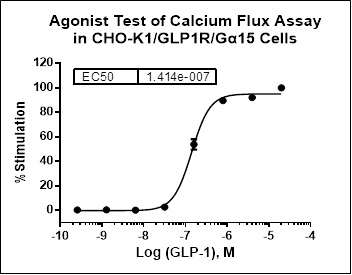

Figure 1. GLP-1 (7-37)-induced concentration-dependent stimulation of intracellular calcium mobilization in CHO-K1/GLP1R/Gα15 cells. The cells were loaded with Calcium-4 prior to being stimulated with agonist GLP-1 (7-37). The intracellular calcium change was measured by FLIPRTETRA. The relative fluorescent units (RFU) were normalized and plotted against the log of the cumulative doses (5-fold dilution) of GLP-1 (7-37) (Mean ± SEM, n = 3). The EC₅₀ of GLP-1 (7-37) on this cell was 0.14 μM.

Notes:
EC₅₀ value is calculated with four parameter logistic equation:
Y=Bottom + (Top-Bottom)/(1+10^((LogEC₅₀-X)*Hill Slope))
X is the logarithm of concentration. Y is the response
Y is % stimulation of RFU and starts at Bottom and goes to Top with a sigmoid shape.

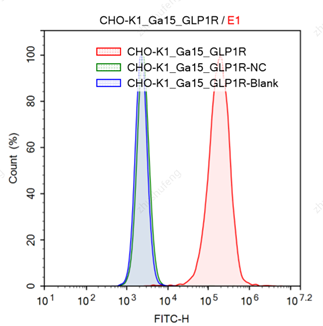

Figure 2. FACS analysis of cell surface expression of GLP1R on CHO-K1/GLP1R/Gα15 stable cell line. The fluorescence signal of the target protein on cell product (red) was compared to negative control (green) and detected with GLP1R Antibody (Cat. No. A01826, GenScript) followed by FITC conjugated Goat anti-Mouse IgG Antibody (H+L) (Cat. No. ab6785, Abcam).

Figure 3. Dose dependent stimulation of intracellular cAMP mobilization upon treatment with calcitonin in CHO-K1/GLP1R/Gα15 cells. d2 acceptor fluorophore-labeled cAMP (Cat. No. 62AM4PEC; Revvity) and intracellular cAMP in CHO-K1/GLP1R/Gα15 cells competitively bind with Europium Cryptate-labeled anti-cAMP monoclonal antibody. The FRET signal decreases as the intracellular cAMP concentration rises and was measured by plate reader (Varioskan, Thermo Fisher). The EC₅₀ of GLP-1 (7-37) was 1.84 nM.

CHO-K1/GLP1R/Gα15 Stable Cell Line

Recombinant CHO-K1 cells stably overexpress human glucagon-like peptide-1 receptor (GLP1R) on the surface and contain high levels of G protein Gαs to couple with the receptor in downstream signaling pathways.

產品編號	M00451
規格	2 vials 大單詢價
數量
價格	詢價


聯系我們

產品簡介

Product Description	Recombinant CHO-K1 cells stably overexpress human glucagon-like peptide-1 receptor (GLP1R) on the surface and contain high levels of G protein Gαs to couple with the receptor in downstream signaling pathways.
Culture Properties	Adherent.
Stability	Stable through more than 16 passages with no significant changes in assay performance or expression profile.
Size	Two vials of frozen cells (>1×10⁶ per vial in 1 mL).
Storage	Store cells in liquid nitrogen immediately upon receipt. Thaw and recover cells within one year from the date received.

培養條件

Culture Medium	Ham’s F-12K (Kaighn’s), 10% FBS, 200 μg/ml Zeocin (Cat. No. R250-01, Life Technologies), 100 μg/ml Hygromycin B (Cat. No. 10687010, Life Technologies)
Complete Growth Medium	Ham’s F-12K (Kaighn’s), 10% FBS
Freeze Medium-DATA	45% Ham’s F-12K (Kaighn’s) (Cat. No. 21127, Life Technologies), 45% FBS (Cat. No. 10099-141, Life Technologies), 10% DMSO (Cat. No. D2650, Sigma)

圖例

Figure 1. GLP-1 (7-37)-induced concentration-dependent stimulation of intracellular calcium mobilization in CHO-K1/GLP1R/Gα15 cells. The cells were loaded with Calcium-4 prior to being stimulated with agonist GLP-1 (7-37). The intracellular calcium change was measured by FLIPRTETRA. The relative fluorescent units (RFU) were normalized and plotted against the log of the cumulative doses (5-fold dilution) of GLP-1 (7-37) (Mean ± SEM, n = 3). The EC₅₀ of GLP-1 (7-37) on this cell was 0.14 μM.

Notes:
EC₅₀ value is calculated with four parameter logistic equation:
Y=Bottom + (Top-Bottom)/(1+10^((LogEC₅₀-X)*Hill Slope))
X is the logarithm of concentration. Y is the response
Y is % stimulation of RFU and starts at Bottom and goes to Top with a sigmoid shape.

Figure 2. FACS analysis of cell surface expression of GLP1R on CHO-K1/GLP1R/Gα15 stable cell line. The fluorescence signal of the target protein on cell product (red) was compared to negative control (green) and detected with GLP1R Antibody (Cat. No. A01826, GenScript) followed by FITC conjugated Goat anti-Mouse IgG Antibody (H+L) (Cat. No. ab6785, Abcam).

Figure 3. Dose dependent stimulation of intracellular cAMP mobilization upon treatment with calcitonin in CHO-K1/GLP1R/Gα15 cells. d2 acceptor fluorophore-labeled cAMP (Cat. No. 62AM4PEC; Revvity) and intracellular cAMP in CHO-K1/GLP1R/Gα15 cells competitively bind with Europium Cryptate-labeled anti-cAMP monoclonal antibody. The FRET signal decreases as the intracellular cAMP concentration rises and was measured by plate reader (Varioskan, Thermo Fisher). The EC₅₀ of GLP-1 (7-37) was 1.84 nM.

For research use only. Not intended for human or animal clinical trials, therapeutic or diagnostic use.
